Description
The enhanced brake capacity and pad performance of the DynaPro 6 forged billet six-piston caliper is combined with 12.19” diameter rotors for this group of front wheel drive sport compact kits. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered vehicle specific to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
| Calipers | |
|---|---|
| Left Hand – Part No: | 120-13435-RD |
| Right Hand – Part No: | 120-13434-RD |
| Type: | Dynapro 6 |
| Finish Color: | Red Powder Coat |
| Piston Count: | 6 |
| Piston 1 Bore (in): | 1.62 |
| Piston 2 Bore (in): | 1.12 |
| Piston 3 Bore (in): | 1.12 |
| Piston Area (In²): | 4.04 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 6712 |
| Brake Pad Area (In²): | 7.3 |
| Brake Pad Volume (In³): | 2.4 |
| Pad Compound: | BP-10 |

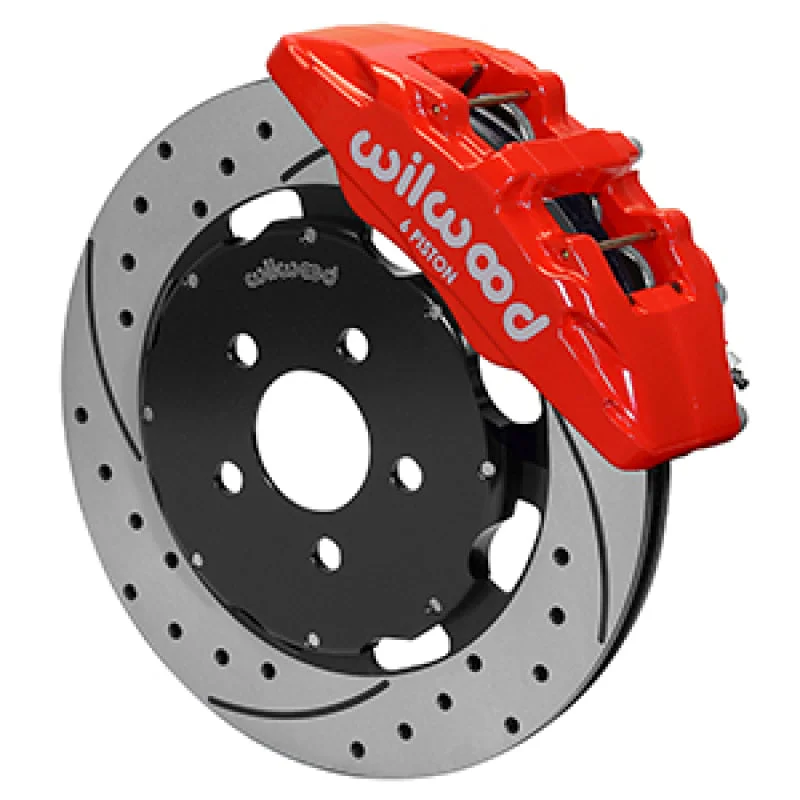

| Dynapro 6 Caliper – Red Powder Coat |
| Rotors | |
|---|---|
| Left Hand – Part No: | 160-7104-BK |
| Right Hand – Part No: | 160-7103-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 12.19 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | SRP-BLK |
| Burnished: | No |
| Dynamically Balanced: | No |
| SRP Drilled Rotor – Iron – Black Electro Coat |
| Rotor Hats | |
|---|---|
| Hat – Part No: | 170-6378 |
| Type: | Big Brake Hat – Short Offset |
| Material: | Aluminum |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 0.500 |
| Bolt Circle 1: | 5 x 3.93 |
| Bolt Circle 2: | |
| Bolt Circle 3: | |
| Stud Diameter – BC 1: | 0.550 |
| Stud Diameter – BC 2: | 0.000 |
| Stud Diameter – BC 3: | 0.000 |
| Big Brake Hat – Short Offset – Aluminum – Black E-Coat |
| Hubs | |
|---|---|
| Hub – Part No: | |
| Type: | |
| Material: | |
| Finish Color: | |
| Mount Style: | |
| Bolt Circle 1: | |
| Bolt Circle 2: | |
| Bolt Circle 3: | |
| Stud Diameter – BC 1: | |
| Stud Diameter – BC 2: | |
| Stud Diameter – BC 3: | |
Parts & Accessories
| Caliper Parts | |
|---|---|
| O-ring Kit: | 130-5972 |
| Replacement Dustboot: | N-A |
| Replacement Piston 1: | 200-7520 |
| Replacement Piston 2: | 200-8439 |
| Replacement Piston 3: | 200-8439 |
| Replacement Piston 4: | N-A |
| CrossOver O-Ring Kit: | 130-10540 |
| Crossover Tube: | N-A |
| Self-Bleeder Tube: | N-A |
| Bridge Bolt Kit: | N-A |
| Wear Plate – Left Hand: | 300-9707 |
| Wear Plate – Right Hand: | 300-9707 |
| Pad Retainer: | 300-17719 |
| Bleed Screw Kit: | 220-0627 |
